Send DataSet and DataTable

Send DataSet and DataTable From Webservice and Consume in Application

I am writing simple instructions with snapshots for a good understanding and for your use in your projects.

Let's create our web service first for sending a DataSet and DataTable.

Step 1 : Open Visual Studio then select  "File" -> "New" -> "Project..." then provide a project name.



I have provided the project name WebServicewithpassingliat.

After adding the project name we will just create a new web service.

Step 2 : Let us add a web service for sending a DataSet and DataTable.

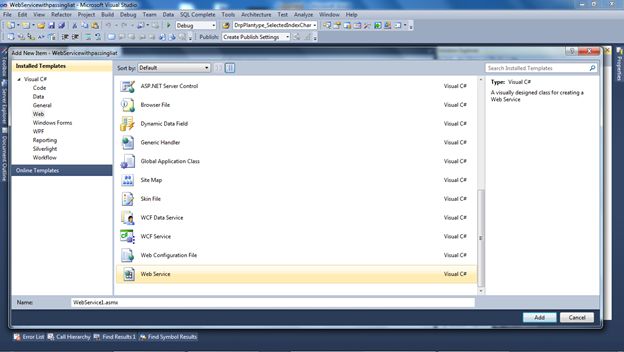

For adding the web service right-click on the solution then select Add > Add New Item then select Web Service then click the Add button.



Step 3 : After adding the web service you will see a WebMethod with the name Helloworld; just remove it.

And create a new WebMethod of type DataSet and name it MobileDataset() and add another Web Method of type DataTable and name it MobileDatatable().

For reference see the following image:

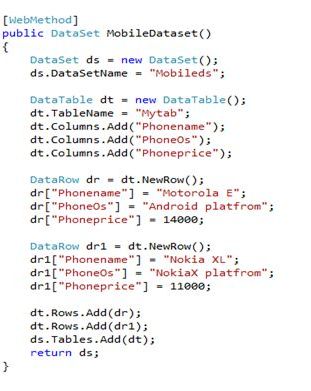

1. DataSet Code Snippet.

   And this Webmethod will return a DataSet.

2. DataTable code snippet.



And this Webmethod will return a DataTable.

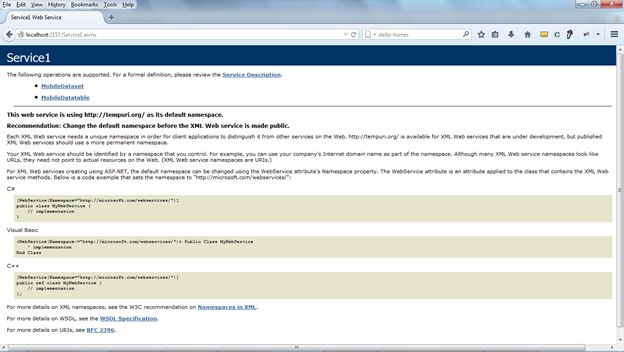

Just run your application now.

You will see the same screen that is given below.



Now just copy this URL.

http://localhost:2157/Service1.asmx

Step 4 : Let's create another project then it will consume this list.

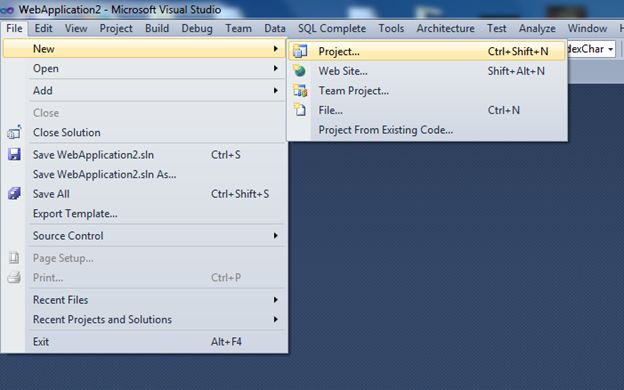

Open Visual Studio then select "File" -> "New" -> "Project..." then provide a project name.

Here I am using the name WebApplication2.

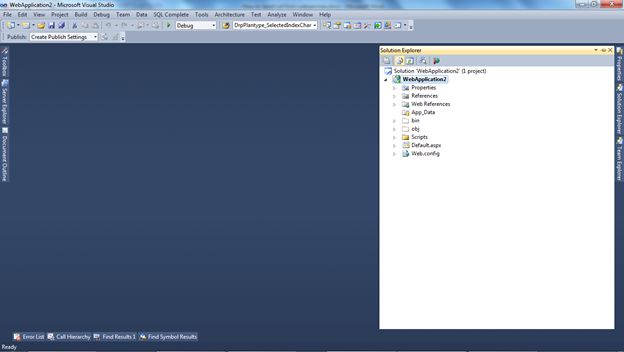

After creating it you will see your solution like the following:

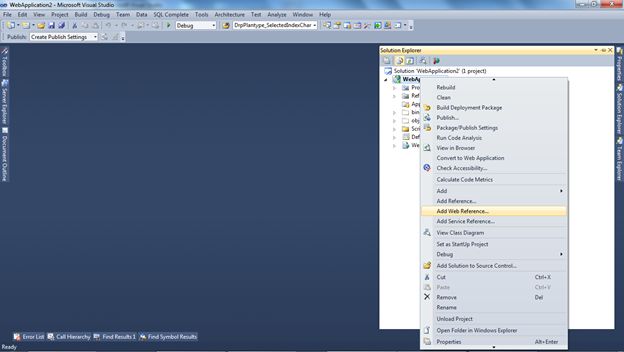

Step 5 : Then just right-click on the solution and select Add Web Reference.

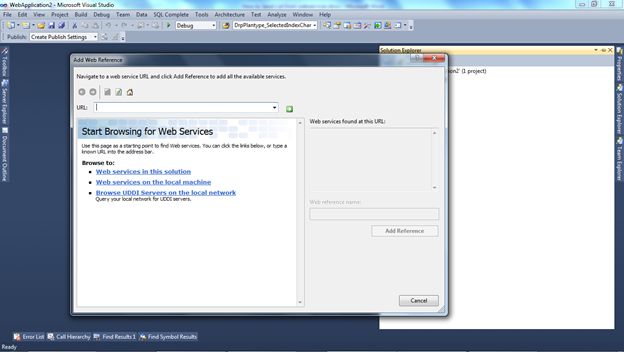

After selecting Add Web Reference a new dialog will pop up asking for an address.



Step 6 : Just paste the preceding address that you copied.

http://localhost:2157/Service1.asmx



After adding the URL just click the Add Reference button.

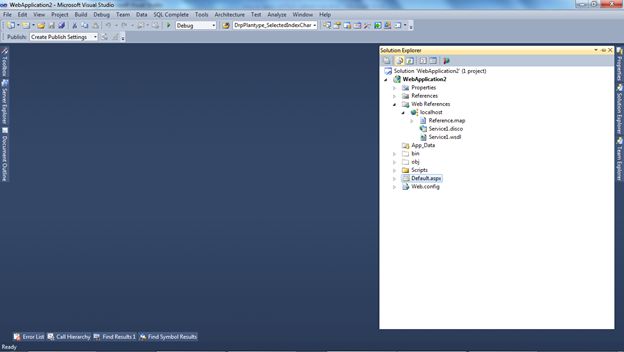

Now your solution will look like this.



Now we have completed the adding of the service.

Step 7: Now we just want to use this service.

We have a default page that is created by default.

On the page load of that page I have created a couple of methods with the names:

1. GET_DATASET(); // For Getting the Dataset
2. GET_DATATABLE(); // for Getting the DataTable

Code of the default page:

1. using System;
2. using System.Collections.Generic;
3. using System.Linq;
4. using System.Web;
5. using System.Web.UI;
6. using System.Web.UI.WebControls;
7. using System.Data;
8. using WebApplication2.localhost;
9. using System.Text;
10.
11. namespace WebApplication2
12. {
13.     public partial class _Default : System.Web.UI.Page
14.     {
15.         protected void Page_Load(object sender, EventArgs e)
16.         {
17.             GET_DATASET();
18.             GET_DATATABLE();
19.
20.         }
21.
22.         public void GET_DATATABLE()
23.         {
24.             localhost.Service1 mo = new WebApplication2.localhost.Service1();
25.             DataTable dt = mo.MobileDatatable();
26.             GridView1.DataSource = dt;
27.             GridView1.DataBind();
28.         }
29.
30.         public void GET_DATASET()
31.         {
32.             localhost.Service1 mo = new WebApplication2.localhost.Service1();
33.             DataSet ds = mo.MobileDataset();
34.             GridView2.DataSource = ds;
35.             GridView2.DataBind();
36.         }
37.     }
38. }

Namespace

1. using WebApplication2.localhost; // is the namespace for accessing service objects

In this code I have created an object of web service that we have added.

1. localhost.Service1 mo = new WebApplication2.localhost.Service1();

After creating an object I have passed an object to the DataSet.

1. localhost.Service1 mo = new WebApplication2.localhost.Service1();
2. DataSet ds = mo.MobileDataset();

For the DataTable I have created an object. I have passed an object to the DataTable.

1. localhost.Service1 mo = new WebApplication2.localhost.Service1();
2. DataTable dt = mo.MobileDatatable();

Design of Default page

1. <html xmlns="http://www.w3.org/1999/xhtml">
2. <head runat="server">
3.     <title></title>
4. </head>
5. <body>
6.     <form id="form1" runat="server">
7.     <div>
8.         <asp:GridView ID="GridView1" runat="server">
9.         </asp:GridView>
10.         <br />
11.         <asp:GridView ID="GridView2" runat="server">
12.         </asp:GridView>
13.     </div>
14.     </form>
15. </body>
16. </html>

I have only added 2 GridViews for displaying data of both the DataTable and DataSet.

After doing that, just run the application and check it.

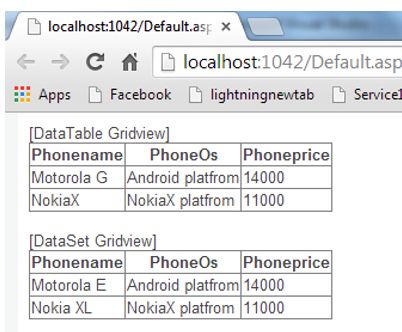

Here is the output:



Now we have successfully transferred a DataTable and DataSet.
